Exercise 3.3

NCERT solutions for Class 9 Maths Coordinate Geometry

 NCERT Solutions for Class 9 Mathematics Coordinate Geometry

1. In which quadrant or on which axis do each of the points (- 2, 4), (3, – 1), (- 1, 0), (1, 2) and (- 3, – 5) lie? Verify your answer by locating them on the Cartesian plane.

Ans. We need to determine the quadrant or axis of the points (– 2, 4), (3, – 1), (- 1, 0), (1, 2) and (– 3, – 5).

First, we need to plot the points (– 2, 4), (3, – 1), (- 1, 0), (1, 2) and (– 3, – 5) on the graph, to get

We need to determine the quadrant, in which the points (– 2, 4), (3, – 1), (- 1, 0), (1, 2) and (– 3, – 5) lie.

From the figure, we can conclude that the point (– 2, 4) lie in II^nd quadrant.

From the figure, we can conclude that the point (3, – 1) lie in IV^th quadrant.

From the figure, we can conclude that the point (–1, 0) lie on x-axis.

From the figure, we can conclude that the point (1, 2) lie in I^st quadrant.

From the figure, we can conclude that the point (– 3, – 5) lie in III^rd quadrant.

NCERT Solutions for Class 9 Maths Exercise 3.3

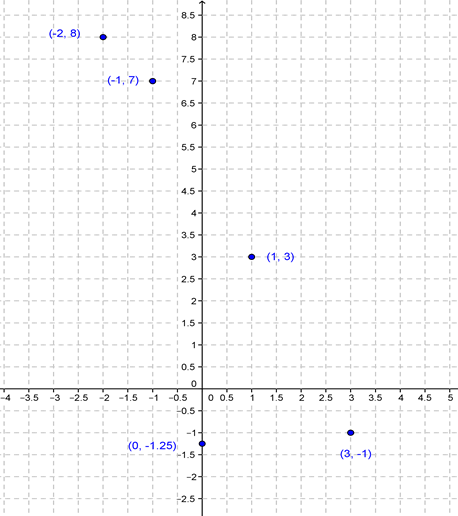

2. Plot the points (x, y) given in the following table on the plane, choosing suitable units of distance on the axes.

Ans. We need to plot the given below points on the graph by using a suitable scale.
